Euro-Profile
Ideal Samples
Euro-Profile Series
The profiles were designed based on European Standard, providing an excellent stability and great weatherproofing
The thickness of the profile ranges from 1.6 mm. up to 2 mm. with various sizes of sash to ensure the suitability of individual window and door
Euro-Profile carries the build-in water drainage system and ability to support high-thickness glass of up to 26 mm. along with the use of EPDM rubber for better soundproofing and anti-leakage
The fabrication can be fabricated in many patterns, for instance, Sliding, Casement in both awning or side-opening direction, fixed and folding. The locking options are available in both single point and multi-point lock system.
Coatings and surface finishings are open widely for selection, for example, gloss finishing, sanded (sahara texture), anodizing, wood texture and natural aluminum color. Special colors upon your preference can be ordered without the requirement of minimum order quantity
The advantage of the Euro-Profile series is the ability to be fabricated in an ultra-large size, the height can possibly reach 5 meters

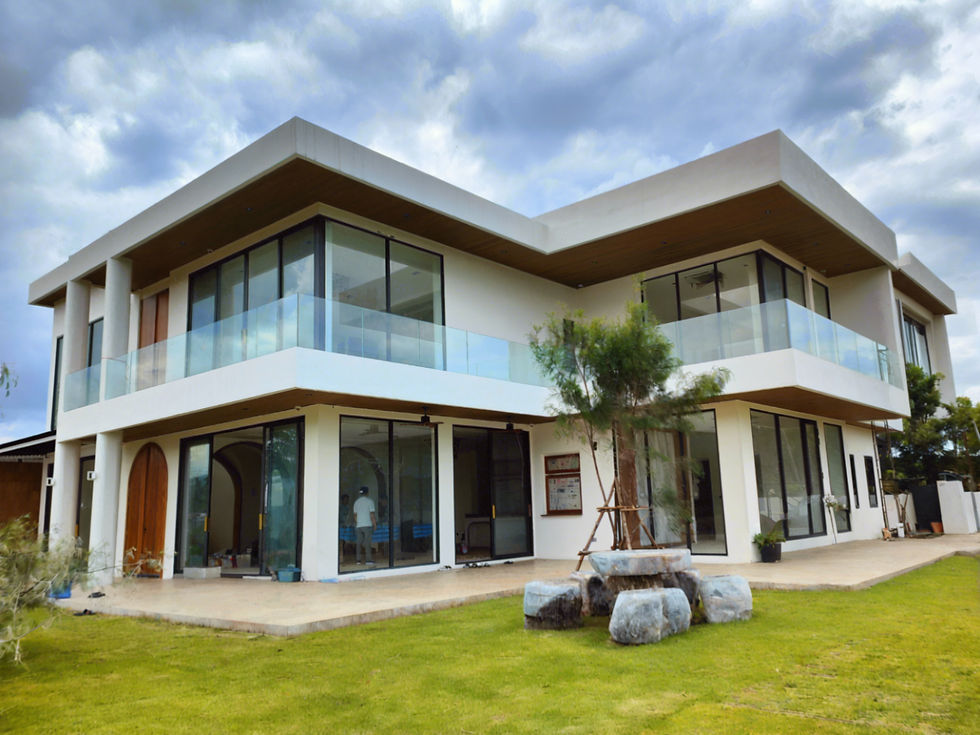

Our References
at META...
"We create better living atmosphere"
Thermal-Break Profile
Ideal Samples
Thermal-Break Series
META Thermal-Break Series were basically designed as an energy-saving concept, mainly to stop heat transfer from the outside to the inside.
Each door and window profile is being separated into 2 parts and subject to joint with the Polyamide strip in between to prevent heat transfer between profiles
Aluminum thickness is 1.6 mm. with various sizes of sash to ensure the suitability of individual window and door
Thermal-break series has build-in water drainage system and ability to support high-thickness glass of up to 32 mm. along with the use of EPDM rubber for better soundproofing and anti-leakage
The fabrication can be fabricated in many patterns, for instance, Sliding, Casement in both awning or side-opening direction, and fixed system. The locking options are available in both single point and multi-point lock system.
Coatings and surface finishings are available in powder coating with gloss and sand textured. Special colors are possble upon provided swatches.
Color Choices
Fitting & Hardware
Available for both Single-Point and
Multi-Point Lock. Various of colors
for selection
Basically designed for casement door with Multi-point lock system. Various of colors for selection
Casement system hardware consisits of tube hinges, friction-hinge and stay-arm which are all made from stainless steel
Available in 2 different styles, flat and bar handle. Flat handle is suitable for any doors or windows with sliding mosquito net. Bar handle os good for the position where mosquito net is not needed
Rollers are available in vary sizes to support different weights of doors and windows, starts from 40 kgs up to 200 kgs
Basically used for casement door system, with and without key is possible upon your personal preference
Accessories like corner joints, EPDM rubber, glass shims and quality sealant are being applied in our products
Casement Window Handle
Casement Door
Handle
Casement Door Hinge &
Stay Arm
Sliding Door Handle
Sliding Roller
Cylinder Knob
Accessories
Glass
This type of glass is considered as one of the safety glass, normally 2-3 times stronger than float glass, still weaker and provides less optical distortion than Tempered Glass.
Heat Strength
Available in various colors (clear, green tinted, and black tinted) with thickness from 5 mm. onwards. Float glass is considered as non-safety glass which breaks in big sharp edge.
Float Glass
Considered as safety glass providing average 4-5 times stronger than float glass as well as safest breakage behavior. Available in various thickness from 6 mm. onwards.
Tempered Glass
The option of having 2 sheets of glass combined with air gap in between. Insulated glass is considered as soundproofing and slightly heatproofing. Air gap size ranges from 8 mm. to 12 mm. with Argon Gas filled in between. The combination of glass thickness usually starts from 5 mm. to 8 mm.
Insulated
The joint of 2 sheets of glass and above connects both glass with 0.38 mm. PVB Film (multi-layers of PVB film is possible) and thickness per a sheet of glass starts from 4 mm. The advantage of laminated glass is the safety factor which one broken glass will be held by PVB film from fallen off the window frame.
Laminated
The combination of 2 processed providing 3 layers of glass along with air gap, very strong and good soundproofing performance.
Laminate Insulate
.jpg)
Reflective glass is considered as the heatproofing glass. The surface is coated with thin layer of metallic or metallic oxide coating. Since this coating is applied to only one side of the glass, it has a mirror-like appearance. It is strongly recommended to have reflective glass in laminated to prevent surface from being scratched.
Reflective
An alternative choice of heatproofing glass. It contains glass that has been coated in invisible layers of metallic oxide. This coating allows natural light to enter the home while deflecting UV rays and infrared light back out into the environment. It is strongly recommended to have reflective glass in laminated to prevent surface from being scratched.
Low Emissivity
